Governale Radiator Products - Gov-Ray radiators

    Notes About Governale Gov-Ray radiators

Recessed Cast Iron Radiators Gov-Ray radiators supply a continuous flow of radiant and convected heat.

The radiant heat combines with the convected heat to shield outside walls and windows, stopping infiltrating cold air right where it starts.

Gov-Ray radiators with snap-on grilles are recessed for attractive, unobtrusive installation.

View the specifics of each type here, if you have any questions, please give us a call.

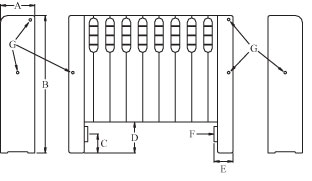

    Governale Gov-Ray Radiator Dimensions
  • All Air Vent Tappings 1/8"
  • All Bottom Tappings 1-1/4"
  • Recess should be 1/2" longer and 1/4" higher than Radiator.
  • Maximum working pressure: 15 lb. steam, 30 lbs. water
    Dimensions
    A
    B
    C
    D
    E
    F*
    G*
    5"
    20"
    2 3/4"
    4 1/2"
    1 7/8"
    1 1/4"
    1/8"

Ratings
Size No. of Sections
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
Overall Length
9
13 1/2
18
22 1/2
27
31 1/2
36
40 1/2
45
49 1/2
54
58 1/2
63
67 1/2
72
76 1/2
Free Standing Rating Sq/Ft
9.0
13.5V
18
22.5
27
31.5
36
40.5
45
49.5
54
58.5
63
67.5
72
76.5
IMPORTANT: When recessed add 10% to room requirements before selecting radiator size.
